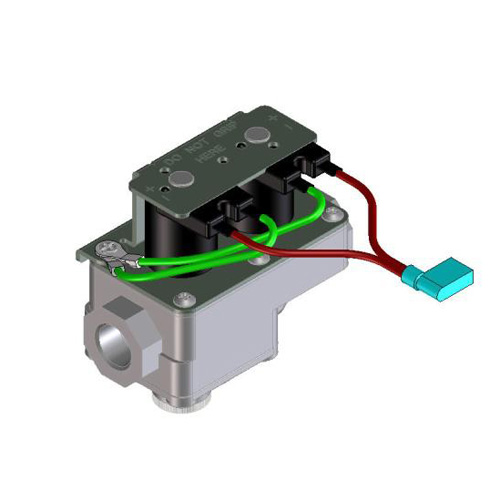

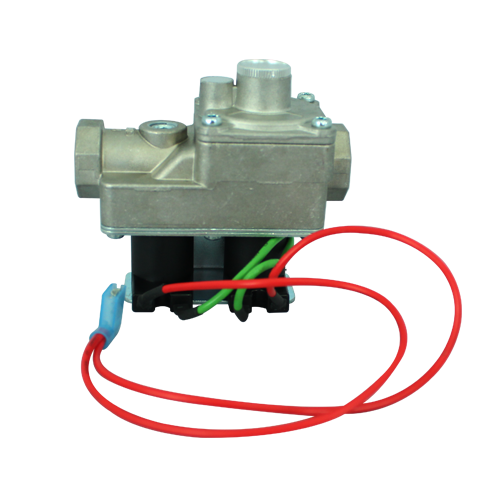

Solenoid valve

Coil Voltage Rating:12 VDC@0.48AMPS
Pull In Voltage:8.4 Volts Maximum
Drop Out Voltage:0.7Volts Minimum
Regulator Setting : High 10.2"W.C.±0.5&11"W.C. Inlet Pressure
Allowable Leakage Rates under inlet pressure from2”WC to 10.5"W.C.:
Externally leakage rate : less than 50cc/h
Internally leakage rate: less than 100cc/h
